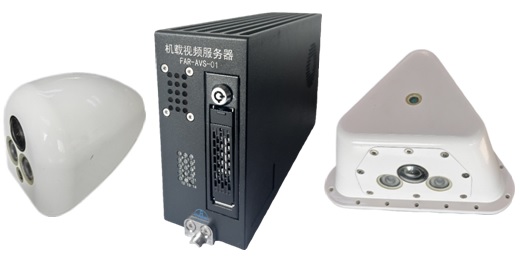

The Airborne Video Monitor Devices are designed to integrate the unified use requirements of 3 video surveillance services: video surveillance outside the cabin, video surveillance inside the cabin, and monitoring the working status of cloud seeding equipment. The Airborne Video Monitor Devices communicate with all cameras and store video surveillance data. The Video Server equipment is connected to the Airborne Integrated Control Equipment via the network, operating within the same local area network, and providing video services to it. The Video Server equipment connects to various cameras, and the connection methods can include network connection. The cameras can be network cameras, infrared light compensating cameras, etc.. The Airborne Video Server is customized according to airborne standards to meet airborne use requirements. Different standard cameras are used for different working environments. Cameras outside the cabin meet airborne, low-temperature, and waterproof requirements. Cameras inside the cabin meet airborne requirements. Cameras for monitoring operational equipment meet corresponding requirements. The video surveillance display functions include displaying surveillance footage from the left and right operation monitoring cameras, the front and rear working cabin cameras, and the panoramic camera. Operation Monitoring Display Function: Design an operation monitoring video display dialog box to show real-time video of the operation status. The dialog box interface includes two video windows, displaying the images from the left and right external monitoring cameras, respectively, to monitor the specific running status of the operation.
In-Cabin Monitoring Display Function: Design an in-cabin monitoring video display dialog box to show real-time video of the front and rear of the cabin. The dialog box interface includes one video window, one video switching button, and one video connection button, used respectively for video surveillance display, switching between front and rear cabin videos, and controlling video connection with the ground center.
Panoramic Monitoring Display Function: Design a panoramic monitoring video display dialog box to show real-time video from the panoramic surveillance camera. The dialog box interface includes one video window and one video connection button, used respectively for video surveillance display and controlling the video connection with the ground center.
